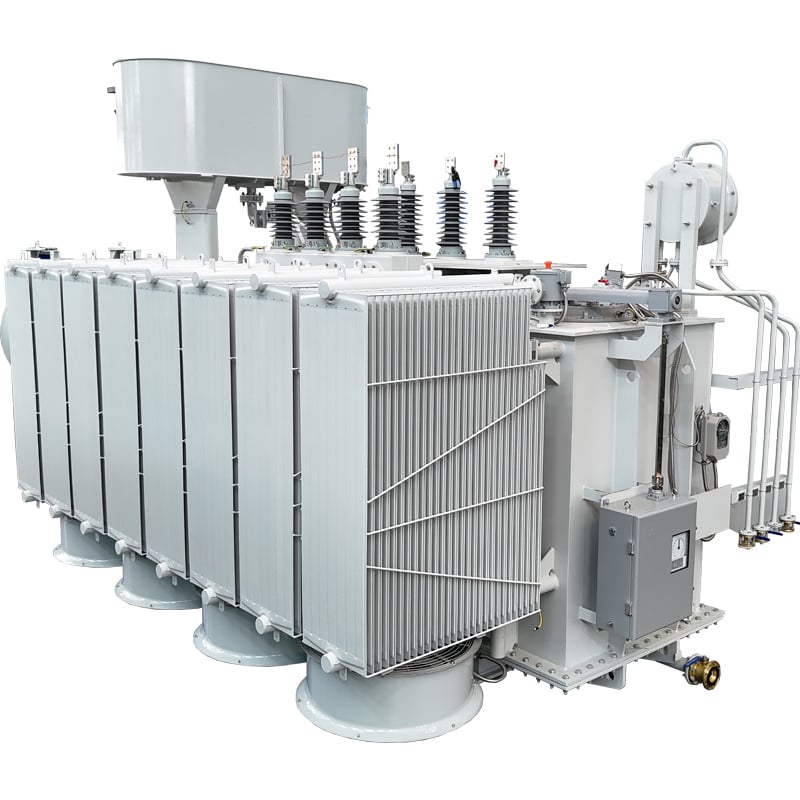

230 kV Three Phase Oil-Immersed Power Transformer
230 kV · Ratings specified per project · IEC, IEEE/ANSI, 60 Hz
TECHNICAL SCOPE
Reviewed against your application.
Transmission substations, utility grid interconnections, renewable collector stations and large industrial step-down projects. Ratings, impedance, cooling, tap range, transport and site requirements are specified per project and confirmed against the approved technical documents. Also available to IEC 220 kV class requirements for projects specifying IEC voltage classes.
Key ratings
- Cooling
- ONAN / ONAF / OFAF / ODAF
- Oil type
- Mineral oil / FR3
- Standard
- IEC 60076 / IEEE-ANSI C57
- Frequency
- 50 / 60 Hz
- Tap Range
- OLTC, range specified per project
- Environment
- Outdoor
- Vector Group
- Specified per project
- Core material
- Cold-rolled grain-oriented silicon steel
- Primary Voltage
- 230 kV (IEC 220 kV class on request)
- Insulation class
- Class A
- Secondary Voltage
- Specified per project
Lead time 4–12 weeks depending on rating and customization · Payment T/T, L/C · Delivery EXW, FOB, CFR, CIF, DDP · OEM / ODM with logo & color customization (RAL) · Custom designs up to 10 MVA · Standard warranty 12–24 months from commissioning or shipment · After-sales: response within 30 minutes, solution in 2 hours, on-site dispatch within 48 hours · MOQ and export packaging specified per project.
NEXT STEP
Specify your transformer.
Voltage class, capacity, environment, standards and delivery window — our application engineers will reply within one business day.
